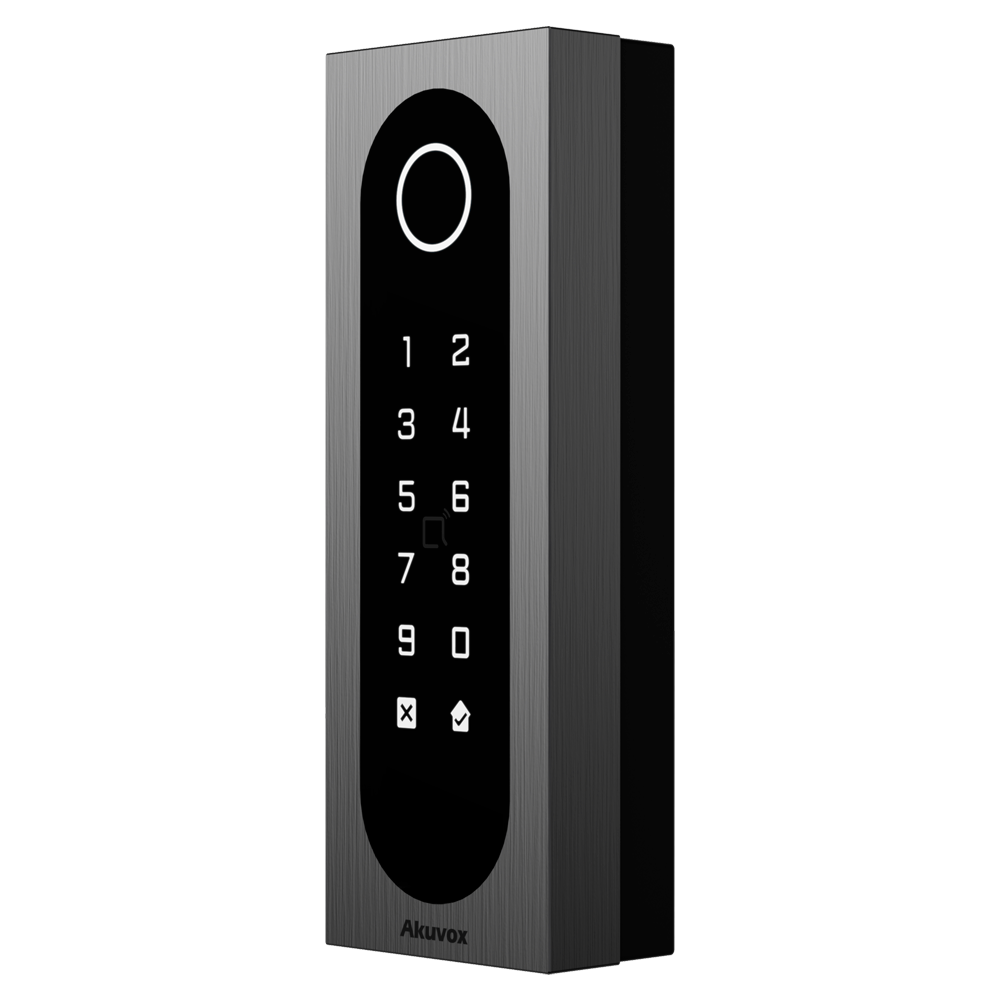

AK-A08S
A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.
This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz, NFC, Bluetooth, QR code reading, as well as keypad for numeric codes. In addition, temporary PIN and QR codes are available to provide limited access from your SmartPlus mobile application.
Advanced configurable functions: anti-pass-back technology (does not allow a person to pass through if he/she is already inside) and 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE).
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK09 anti-vandalism rating allows it to withstand the most challenging environments.
From the Akuvox Cloud, the configuration of users, schedules and access groups, as well as special functions, opening times of the relays or reading time of the readers is performed.
Akuvox
Access control
Stand-alone operation or as a reader
Integrated speaker
EM/MF, NFC, BLE, PIN and QR card identification
Opening by temporary PIN or QR keys
Capacity for 20.000 cards & 100.000 registers
TCP/IP Connection
PoE IEEE802.3af
Remote door opening
1 relay output
12 V/500 mA output (when powered by PoE from firmware version 108.2.0)
Wiegand ports and RS485
Configurable LED illumination on card reader
Suitable for exterior IP65
Protection IK09
Integrated controller and access times
Advanced features: anti-passback (through Cloud)
Surface mounting
Complete configuration via web browser
Push notifications
Firmware upgrades via cloud with installer control
Connection between devices via cloud on different networks
Remote configuration access for installation
The AK-COUPON-DOOR license is required for the fourth door and beyond in office projects
Especificaciones
| Categoria | Standalone |
| Marca | AKUVOX |
| Stock | High |
| Capacidad | 20000 |
| Tecnologia rfid | EM (125kHz) and MF (13.56MHz) |
| Proteccion | IP65, IK09 |
| Identificacion | Card, NFC, PIN, BLE and QR |
| Otros | Output 12V, Anti-passback |
| Registros | 100000 |
| Categoria | Autónomos |
| Marca | AKUVOX |
| Stock | High |
| Capacidad | 20000 |
| Otros | Salida 12V, Anti-passback |
| Tecnologia rfid | EM (125kHz) y MF (13.56MHz) |
| Identificacion | Tarjeta, NFC, PIN, BLE y QR |
| Registros | 100000 |
| Proteccion | IP65, IK09 |
