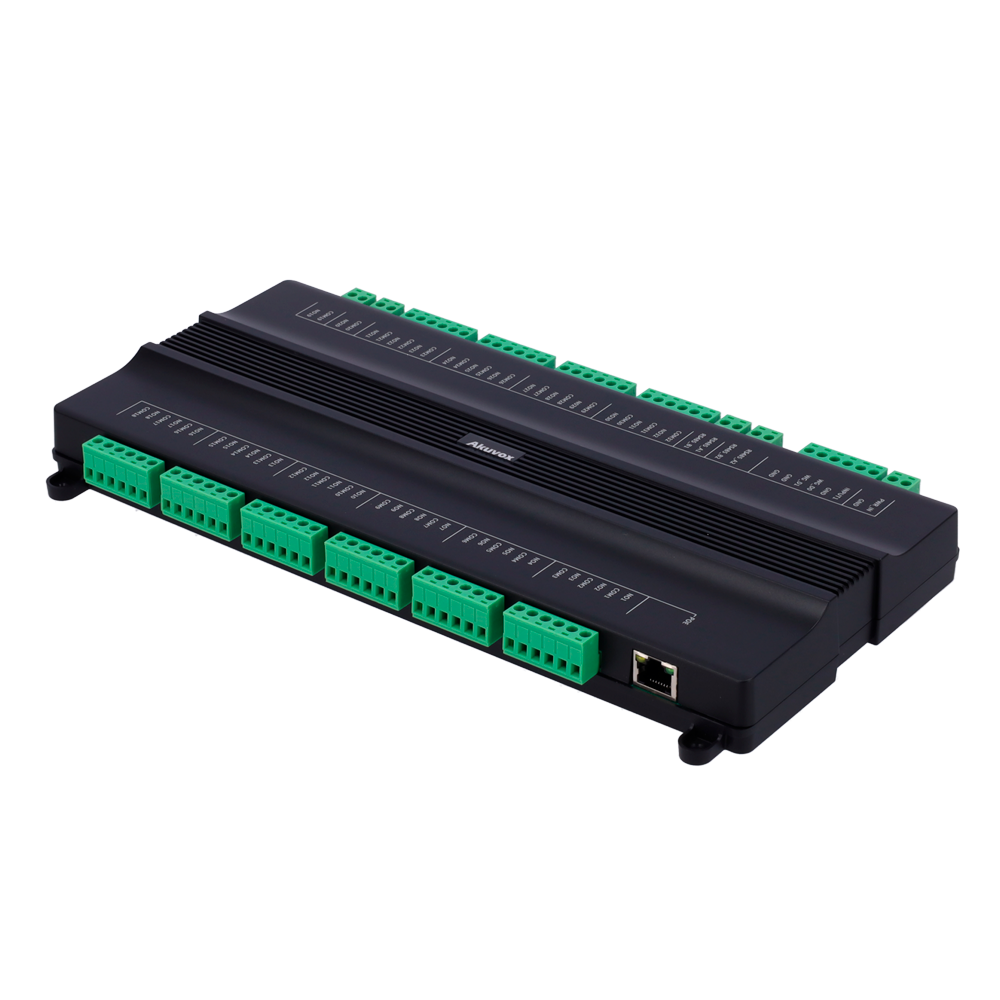

AK-EC33P
An access controller is a professional element for the protection of perimeters and gates. They are located in safe and hidden places, allowing the connection of the readers, which are placed in the visible place of the installation and identify the user who wants to access, as well as the connection to the electronic locks, which will be activated if the user is allowed access.
This controller supports readers based on the Wiegand protocol, which allows the connection through direct wiring of each reader to the controller. It has 1 readers.
The controllers allow to manage several doors simultaneously by means of several relay outputs. This model has 32 relay outputs, being configurable as dry contact (without voltage).
By using an access controller, it is possible to ensure certain functions, such as opening all doors when a fire signal is received or triggering an alarm when a forced door is detected. Thanks to its inputs and outputs, it is possible to manage these functions in a simpler way.
From the Akuvox Cloud, the configuration of users, schedules and access groups, as well as special functions, opening times of the relays or reading time of the readers is performed.
Akuvox
Elevator controller
Management of 32 floors
Up to 128 floors in total with expansion controllers
Capacity 20.000 users and 100.000 records
Supports up to 1 Wiegand reader
TCP/IP communication and RS485
Powered by PoE IEEE802.3af
2 RS485 inputs for expansion controllers and 1 fire inputs
32 relay outputs
Relay configuration NO/NC
Without box
DIN rail mount
Complete configuration via web browser
Firmware upgrades via cloud with installer control
Connection between devices via cloud on different networks
Remote configuration access for installation
Especificaciones
| Categoria | Controllers |
| Marca | AKUVOX |
| Stock | onrequest |
| Capacidad | 100000 |
| Tecnologia rfid | EM (125kHz) and MF (13.56MHz) |
| Proteccion | Indoor |
| Identificacion | Card |
| Otros | Elevator controller |
| Registros | 100000 |
| Numero de lectores | 1 Wiegand |
| Tipo de lector | Wiegand |
| Soporta biometria | No |
| Numero de puertas | 32 Doors |
| Usuarios | 20000 |
| Categoria | Controladoras |
| Marca | AKUVOX |
| Stock | onrequest |
| Capacidad | 100000 |
| Otros | Controladora de ascensor |
| Tecnologia rfid | EM (125kHz) y MF (13.56MHz) |
| Identificacion | Tarjeta |
| Registros | 100000 |
| Proteccion | Interior |
| Usuarios | 20000 |
| Tipo de lector | Wiegand |
| Numero de lectores | 1 Wiegand |
| Numero de puertas | 32 Puertas |
| Soporta biometria | No |
