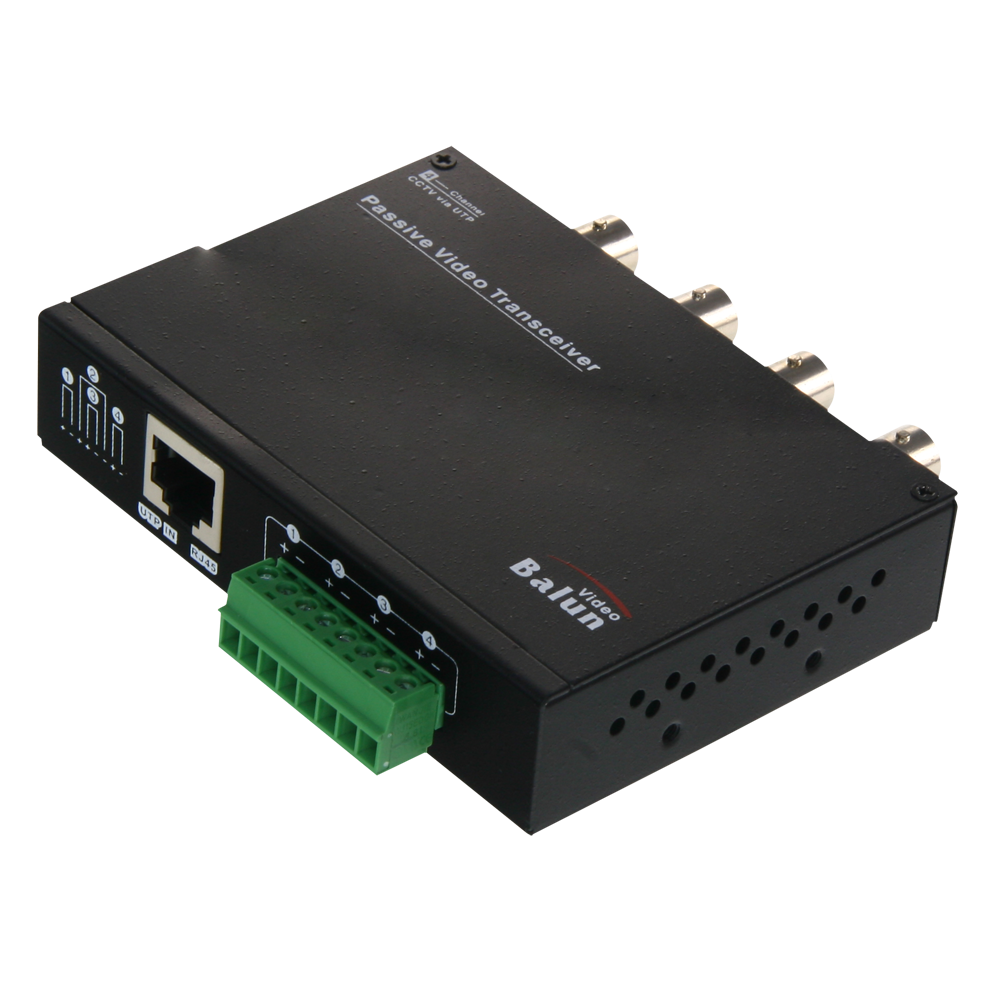

BA614P-HAC
Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.
The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.
It also has a connector for UTP cable, which works with RJ45 or with clamps for 4 contacts +/-, for a wired cable connection.
The maximum length between the end that connects to the camera and the end that connects to the video output is :
HDTVI 720p - 200 m
HDTVI 1080p - 300 m
HDCVI 720p - 400 m
HDCVI 1080p - 200 m
AHD 720p - 300 m
AHD 1080p - 300 m
AHD 4 MP - 300 m
HDTVI 4 MP 100 m
HDCVI 4 MP 200 m
HDTVI 4K 100 m
HDCVI 4K 200 m
Rack mount possibility 19".
Especificaciones
| Categoria | Video by UTP |
| Marca | PRIVATE BRAND |
| Stock | High |
| Resolucion | 4Mpx |
| Categoria | Vídeo por UTP |
| Marca | OEM |
| Stock | High |
| Resolucion | 4Mpx |
