BA617P-HAC-C

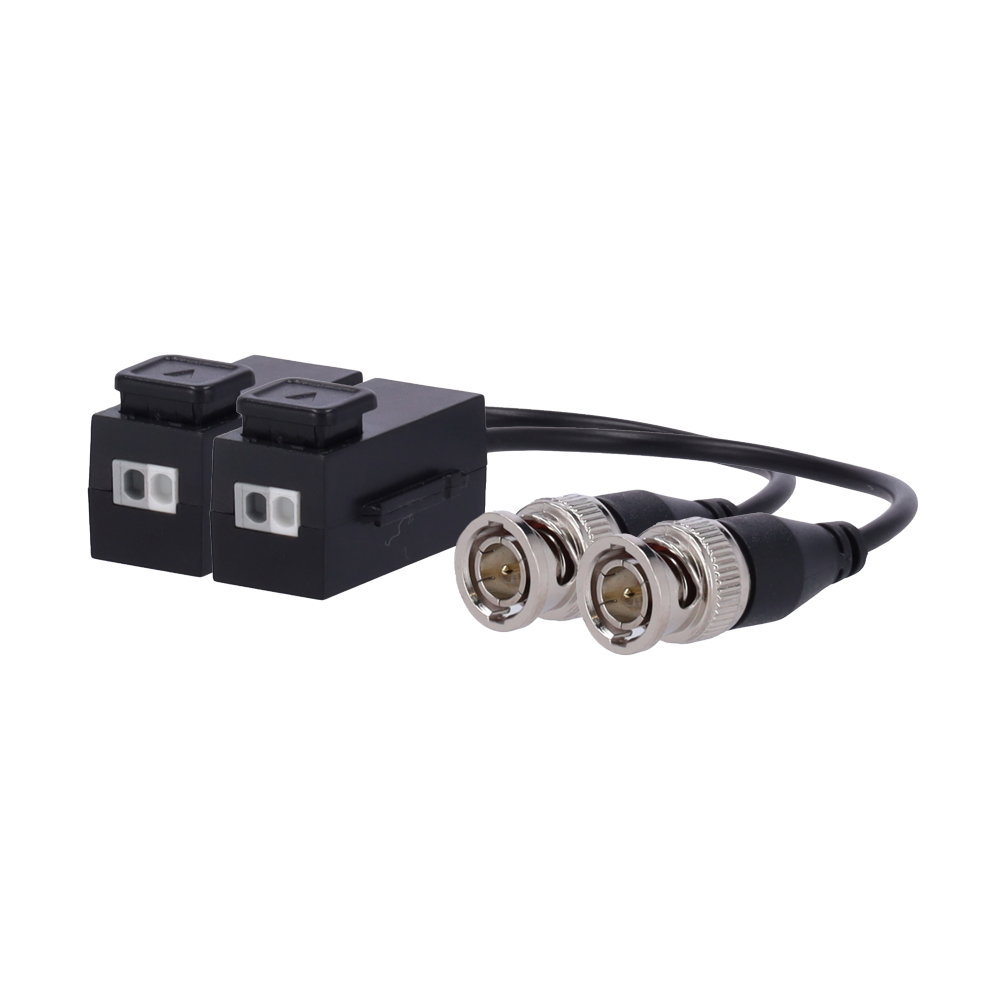

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).
Optimized for the transmission of the video signal from 1 HDTVI, HDCVI, AHD or CVBS camera via twisted pair. It features a male BNC connector and a cable insertion terminal with a two-pin connector.
The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used. In the specifications tab you can consult the distance values depending on the resolution and technology.
Safire
Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD
1 channel
Passive
BNC/UTP 2 pins
Video
Maximum TVI range: 200 m
Maximum range CVI: 350 m
Maximum AHD range: 350 m
Maximum CVBS range: 350 m
Resolution 8Mpx, 5Mpx, 4Mpx, 1080p, 720p
2 units (transmitter and receiver)
Especificaciones
| Categoria | Video by UTP |
| Marca | SAFIRE |
| Stock | nostock |
| Resolucion | 8 Mpx |
