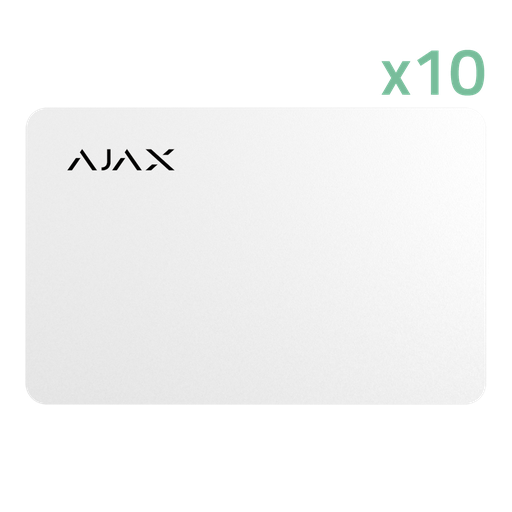

Ajax Pass is a wireless proximity card designed to identify users within the Ajax security system.
The card allows users to quickly and conveniently manage the system simply by holding it up to the keypad reader, without having to use the mobile app or enter codes.
The device incorporates DESFire® RFID, a technology based on the international ISO 14443, standard that combines 128-bit encryption and copy protection. It allows you to grant access to registered users, providing a simple way to manage entry and exit to homes, offices, stores, or facilities with multiple users. You can link to up to 13 hubs.
The device is configured and managed through the Ajax apps for end users and professionals, where you can assign it to a specific user, control access permissions, and manage its operation within the system. In addition, the system allows you to monitor the status of associated devices and maintain centralized control over authorized access.
Ajax -Contactless Access Card
10 units
MIFARE DESFire® Technology
Valid for 13 Different Hubs
ISO Standard 14443-А (13,56 MHz)
Maximum security, identify users quickly and securely
White colour

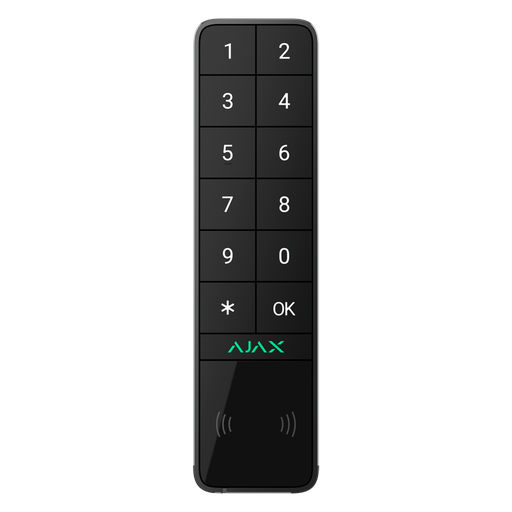

Ajax KeyPad Outdoor Jeweller is the outdoor wireless keyboard ready to work in all types of environments, as it has a stainless steel housing with IP66 and IK08 impact protection.
Enables control of the security system via RFID, access codes and smartphone, using Bluetooth Low Energy (BLE). In addition, it supports arming, partial arming, disarming and emergency modes, along with the configuration of duress codes and guest access.
OTA (Over-The-Air) updates are software updates performed wirelessly, without the need to connect the devices to a computer or cable. This allows users of Ajax systems to keep their devices up to date with the latest enhancements, bug fixes and new features without direct user intervention. Updates are managed through the Ajax app, making installation easy and ensuring that all devices within the system are kept in sync and protected.
Ajax Jeweller
Standalone keypad
Jeweller Protocol (Wireless) 868 MHz Jeweller
Grade 2 approved
Bidirectional
Additional power supply 12 V DC
Tamper-resistant opening
Allows full/partial arming/disarming by code, tags and cards
Authentication control via codes, RFID reader or Bluetooth
Supports access codes, duress and guests
Buzzer 60 dB for audible notification (alarm, security mode change, entry and exit delays, chime)
Used to protect the panel in a safe place
LED System Status indicator
Weatherproof IP66
Anti-vandal IK08
Includes mounting bracket
Black colour

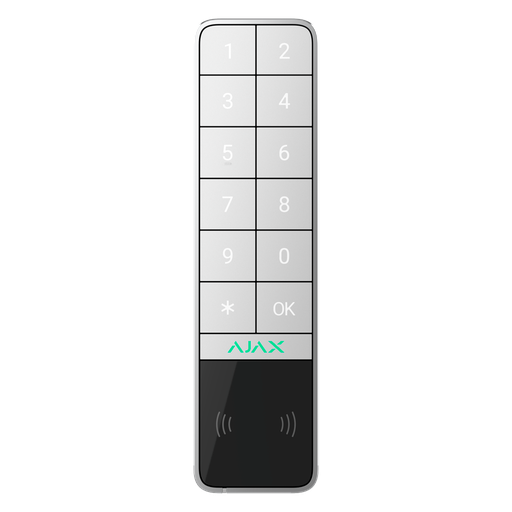

Ajax KeyPad Outdoor Jeweller is the outdoor wireless keyboard ready to work in all types of environments, as it has a stainless steel housing with IP66 and IK08 impact protection.
Enables control of the security system via RFID, access codes and smartphone, using Bluetooth Low Energy (BLE). In addition, it supports arming, partial arming, disarming and emergency modes, along with the configuration of duress codes and guest access.
OTA (Over-The-Air) updates are software updates performed wirelessly, without the need to connect the devices to a computer or cable. This allows users of Ajax systems to keep their devices up to date with the latest enhancements, bug fixes and new features without direct user intervention. Updates are managed through the Ajax app, making installation easy and ensuring that all devices within the system are kept in sync and protected.
Ajax Jeweller
Standalone keypad
Jeweller Protocol (Wireless) 868 MHz Jeweller
Grade 2 approved
Bidirectional
Additional power supply 12 V DC
Tamper-resistant opening
Allows full/partial arming/disarming by code, tags and cards
Authentication control via codes, RFID reader or Bluetooth
Supports access codes, duress and guests
Buzzer 60 dB for audible notification (alarm, security mode change, entry and exit delays, chime)
Used to protect the panel in a safe place
LED System Status indicator
Weatherproof IP66
Anti-vandal IK08
Includes mounting bracket
White colour

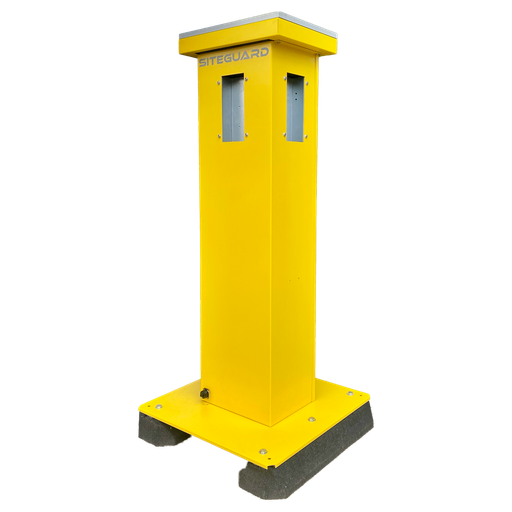

SiteGuard Ajax Ready
Perimeter protection tower
12V solar panel and MPPT regulator
Includes IP65 housing to protect the MPPT regulator and alarm panel
Prepared for Ajax intrusion system installation
Wiring for connection of a 12V backup battery (up to 85 Ah)
2 anti-vibration blocks bolted to tower base
Recommended Ajax devices (not included): AJ-HUB2-4G-W/B, 1 x AJ-DC1224V-PCB2, 4 x AJ-MOTIONCAMOUTDOR-W, 2 x AJ-STREETSIREN-W/B, 1 x AJ-DOORPROTECTPLUS-W y 1 x AJ-RELAY
Recommended back-up battery (not included): BATT-1244-U
White colour

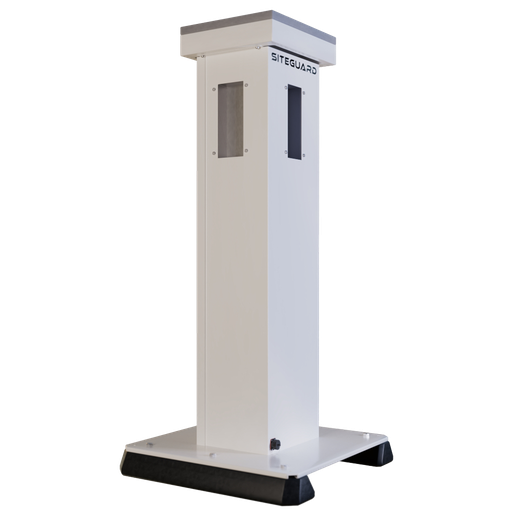

SiteGuard Ajax Ready
Perimeter protection tower
12V solar panel and MPPT regulator
Includes IP65 housing to protect the MPPT regulator and alarm panel
Prepared for Ajax intrusion system installation
Wiring for connection of a 12V backup battery (up to 85 Ah)
2 anti-vibration blocks bolted to tower base
Recommended Ajax devices (not included): AJ-HUB2-4G-W/B, 1 x AJ-DC1224V-PCB2, 4 x AJ-MOTIONCAMOUTDOR-W, 2 x AJ-STREETSIREN-W/B, 1 x AJ-DOORPROTECTPLUS-W y 1 x AJ-RELAY
Recommended back-up battery (not included): BATT-1244-U
Yellow color

Grade 2 certified wireless alarm center for installations without permanent power supply. It is the ideal control panel for unoccupied homes or remote locations that need protection. Hub BP allows a long autonomy thanks to its long life operation with internal and external batteries (e.g. zinc-air batteries).
The different communication channels offer great versatility to this control panel. Communication with the cloud is via 4G (LTE) with dual SIM. For radio communication with the devices, Hub BP has Jeweller and Wings (868 MHz), enabling photo verification with Ajax MotionCam devices. For locations where the wireless coverage (mobile network, Jeweller and Wings) is poor, it is possible to use the AJ-EXTERNALANTENNA-B external antenna, because with a length of 3 meters it allows to find an optimal placement. For your protection, it has cut detection on the antenna to instantly notify the security company.
This BP Hub uses Ajax's proprietary Malevich operating system designed to optimize the performance of security panels. Offers increased security, reliability and speed, with regular OTA (over-the-air) updates ensuring high tamper resistance. Includes advanced features such as remote configuration, self-diagnostics and real-time stability, protecting devices against cyber-attacks and physical tampering. In addition, it efficiently manages the simultaneous and instantaneous sending of alarm messages over the Internet. It is critical to maintaining the integrity and functioning of the Ajax ecosystem.
Ajax
Wireless exchange via Dual SIM 4G
Bidirectional
Jeweller Protocol 868MHz
Optimized to protect empty houses or remote locations without access to the power grid
Internal antenna range open space 2000 m
Compatible with AJ-EXTERNALANTENNA-B external antenna for Jeweller, Wings and 4G (not included)
Supervision from 12 s
Tamper-resistant opening
Anti-jamming
Main supply by external battery 4.2~16 V (e.g. zinc-air)
Backup power supply by rechargeable lead acid battery or LiFePO4 (not included) for long term use
Connect up to 100 wireless devices
Up to 50 users
Compatible with photodetectors and other alarm accessories included in our product catalogue
Grade 2 approved
Interior use
Black colour

The Ajax CurtainCam Outdoor HighMount is a wireless motion detector designed for outdoor installation at heights ranging from 2 to 4 meters, providing curtain-style coverage for narrow areas and critical points. This device combines high-precision motion detection with visual verification, allowing images to be captured upon detection of an intrusion or on demand, facilitating a quick and effective assessment of the situation.
Equipped with two independent PIR sensors and a K-band microwave sensor, the CurtainCam Outdoor HighMount PhOD accurately distinguishes between real threats and environmental factors, significantly reducing false alarms. Its anti-masking system complies with Grade 2, requirements, protecting it against sabotage attempts or blocking of the field of vision. In addition, it has tamper protection and an accelerometer that warns of disassembly or tampering attempts.
Thanks to its wireless communication with Jeweller and Wings technology, the device transmits alarms and images quickly and securely to compatible Ajax hubs. PhOD (Photo on Demand) capability allows the user to request images at any time from the Ajax application, providing full control over the security of the protected area.
Ajax alarm panels use Ajax's proprietary Malevich operating system designed to optimize the performance of the security panels. Offers increased security, reliability and speed, with regular updates to ensure high tamper resistance. This device incorporates OTA (over-the-air) updates, which add new functions without the need for installation, from anywhere in the world.
Ajax
Outdoor curtain-type photodetector with image request
Dual-technology curtain sensor: PIR and K-band microwave sensor (24 GHz)
Installation in height (2~4 m)
Bidirectional
868MHz Jeweller Wireless
Internal antenna range open space 1700 m
Anti-masking sensor
Motion detection indicator
Detection: Range 15m / H: 7º / V: 73º
Tamper-resistant opening
Maximum VGA resolution and HDR technology
Sending up to 5 images for each detection
Privacy manager for image request from App
Power supply 6 batteries CR123A 3.0 V Panasonic (estimated life 4 years)
IP55
Outdoor use
Includes swivel bracket
White colour

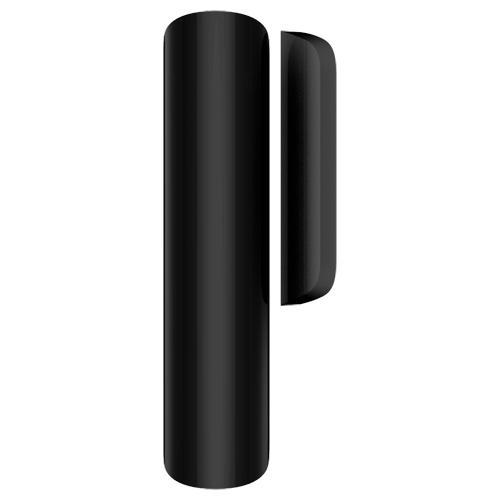

Magnet designed to work with the Ajax DoorProtect and DoorProtect Plus opening detectors as part of the Ajax security system.
The magnet allows the detector to determine whether doors and windows are open or closed by changing the state of the reed relay sensor through the magnetic field it generates.
Ajax
Large Replacement Magnet for AJ-DOORPROTECT-W and AJ-DOORPROTECTPLUS-W
Detector not included
Black colour
