Ensure maximum stability and purity in your fiber optic connections with this high-performance single-mode attenuator. Designed specifically to mitigate overpowering in sensitive optical receivers, this device introduces a controlled loss of 3 dB, which prevents saturation of the receiving equipment. It is the ideal component for GPON and FTTH network deployments and long-distance telecommunications systems, where maintaining a balanced power budget is critical to preventing transmission errors and ensuring flawless service continuity.
Built with telecommunications-grade materials, this attenuator features a rugged outer casing in a standard green color that makes it easy to identify quickly in the field. Its internal design incorporates a high-precision, doped zirconia ceramic sleeve, ensuring a perfect, play-free fit. APC polishing (angled physical contact at an angle of 8°)) deflects reflections away from the fiber core, resulting in exceptionally high return loss that actively protects the emitting laser diodes against destructive back reflections.
Fixed nominal attenuation of 3 dB.
SC/APC male-female connector.
Return loss (APC) greater than or equal to 65 dB.
Wavelengths of 1310 nm and 1550 nm.
Attenuation tolerance: ± 0.5 dB.
Single-mode compatible fiber of 9/125 microns.
Polarization-dependent loss less than 0.2 dB.

Ensure maximum stability and purity in your fiber optic connections with this high-performance single-mode attenuator. Designed specifically to mitigate overpowering in sensitive optical receivers, this device introduces a controlled loss of 5 dB, which prevents saturation of the receiving equipment. It is the ideal component for GPON and FTTH network deployments and long-distance telecommunications systems, where maintaining a balanced power budget is critical to preventing transmission errors and ensuring flawless service continuity.
Built with telecommunications-grade materials, this attenuator features a rugged outer casing in a standard green color that makes it easy to identify quickly in the field. Its internal design incorporates a high-precision, doped zirconia ceramic sleeve, ensuring a perfect, play-free fit. APC polishing (angled physical contact at an angle of 8°)) deflects reflections away from the fiber core, resulting in exceptionally high return loss that actively protects the emitting laser diodes against destructive back reflections.
Fixed nominal attenuation of 5 dB.
SC/APC male-female connector.
Return loss (APC) greater than or equal to 65 dB.
Wavelengths of 1310 nm and 1550 nm.
Attenuation tolerance: ± 0.5 dB.
Single-mode compatible fiber of 9/125 microns.
Polarization-dependent loss less than 0.2 dB.

Ensure maximum stability and purity in your fiber optic connections with this high-performance single-mode attenuator. Designed specifically to mitigate overpowering in sensitive optical receivers, this device introduces a controlled loss of 10 dB, which prevents saturation of the receiving equipment. It is the ideal component for GPON and FTTH network deployments and long-distance telecommunications systems, where maintaining a balanced power budget is critical to preventing transmission errors and ensuring flawless service continuity.
Built with telecommunications-grade materials, this attenuator features a rugged outer casing in a standard green color that makes it easy to identify quickly in the field. Its internal design incorporates a high-precision, doped zirconia ceramic sleeve, ensuring a perfect, play-free fit. APC polishing (angled physical contact at an angle of 8°)) deflects reflections away from the fiber core, resulting in exceptionally high return loss that actively protects the emitting laser diodes against destructive back reflections.
Fixed nominal attenuation of 10 dB.
SC/APC male-female connector.
Return loss (APC) greater than or equal to 65 dB.
Wavelengths of 1310 nm and 1550 nm.
Attenuation tolerance: ± 0.5 dB.
Single-mode compatible fiber of 9/125 microns.
Polarization-dependent loss less than 0.2 dB.

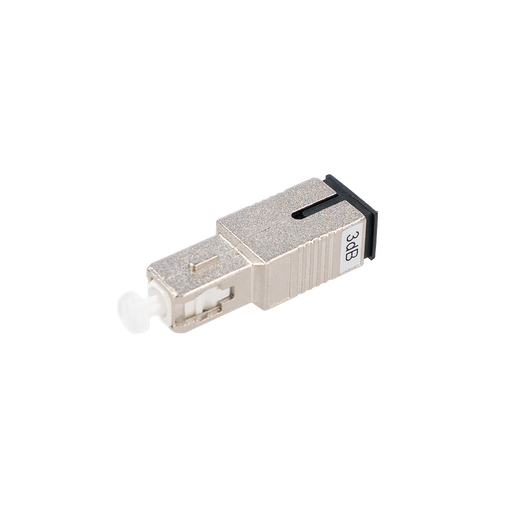

The ATT-SCUPC-03 connector features an aspheric polish that ensures a return loss of more than 50 dB, minimizing any harmful back reflection. Its compact, ergonomic, standard-style design allows for easy handling and a perfect fit even in patch panels with an extremely high port density.
Fixed nominal attenuation of 3 dB.
SC/UPC male-female connector.
Return loss (UPC) greater than or equal to 50 dB.
Wavelengths of 1310 nm and 1550 nm.
Attenuation tolerance: ± 0.5 dB.
Single-mode compatible fiber of 9/125 microns.
Polarization-dependent loss less than 0.2 dB.

The ATT-SCUPC-05 connector features an aspheric polish that ensures a return loss of more than 50 dB, minimizing any harmful back reflection. Its compact, ergonomic, standard-style design allows for easy handling and a perfect fit even in patch panels with an extremely high port density.
Fixed nominal attenuation of 5 dB.
SC/UPC male-female connector.
Return loss (UPC) greater than or equal to 50 dB.
Wavelengths of 1310 nm and 1550 nm.
Attenuation tolerance: ± 0.5 dB.
Single-mode compatible fiber of 9/125 microns.
Polarization-dependent loss less than 0.2 dB.

The ATT-SCUPC-10 connector features an aspheric polish that ensures a return loss of more than 50 dB, minimizing any harmful back reflection. Its compact, ergonomic, standard-style design allows for easy handling and a perfect fit even in patch panels with an extremely high port density.
Fixed nominal attenuation of 10 dB.
SC/UPC male-female connector.
Return loss (UPC) greater than or equal to 50 dB.
Wavelengths of 1310 nm and 1550 nm.
Attenuation tolerance: ± 0.5 dB.
Single-mode compatible fiber of 9/125 microns.
Polarization-dependent loss less than 0.2 dB.
