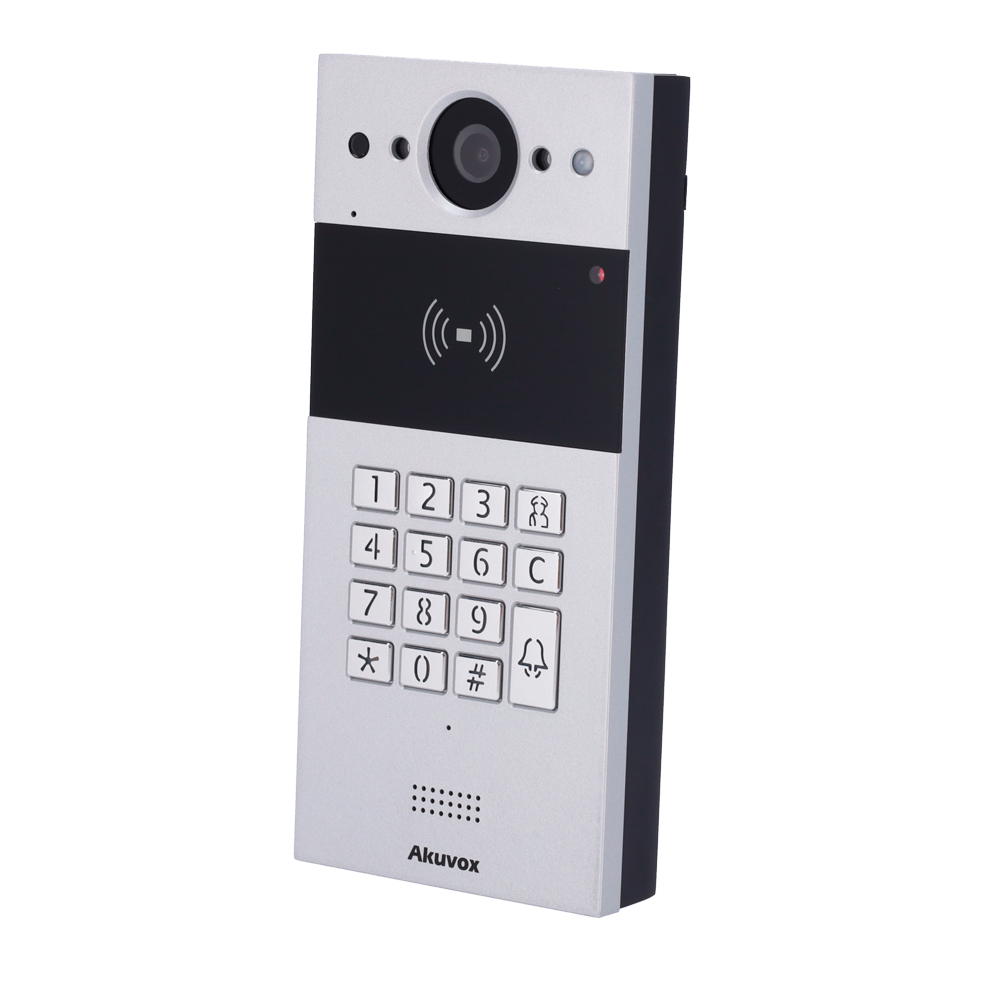

AK-R20K-2
The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, NFC, as well as keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
The 2 wire equipment communicates and is powered by conventional copper cables (called wires) and distributors, making it possible to reuse conventional installations that already have this type of wiring.
Its physical numeric keypad allows users to easily call and enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK07 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
2 wire Video intercom with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
Connection 2 LP wires
Integrated EM/MF and NFC card reader
Opening with temporary PIN keys
Remote door opening
1 door relay output
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Vandal-resistant aluminum alloy surface IK07
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
Especificaciones
| Categoria | Communities 2 Threads |
| Marca | AKUVOX |
| Stock | High |
| Alimentacion | DC24V |
| Comunicacion | 2 IP-based threads |
| Tecnologia rfid | EM (125kHz) and MF (13.56MHz) |
| Proteccion | IP65, IK07 |
| Tecnologia | 2 wires Villa |
| Producto | Panel |
| Pantalla | Does not have |
| Modos de acceso | Card, NFC and PIN |
| Camara | 2 Mpx |
| Categoria | Comunidades 2 Hilos |
| Marca | AKUVOX |
| Stock | High |
| Alimentacion | DC24V |
| Comunicacion | 2 hilos basado en IP |
| Tecnologia rfid | EM (125kHz) y MF (13.56MHz) |
| Proteccion | IP65, IK07 |
| Producto | Placa |
| Tecnologia | 2 Hilos Villa |
| Pantalla | No dispone |
| Modos de acceso | Tarjeta, NFC y PIN |
| Camara | 2 Mpx |
