The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with 125 kHz RFID EM and 13.56 MHz MF technology, NFC, Bluetooth, as well as keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Your 2.8" screen allows you to display the directory of users to call, along with your numeric keypad, to enter PIN codes for access.
Its exterior grade IP66 allows it to be installed outdoors. In addition, its IK08 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

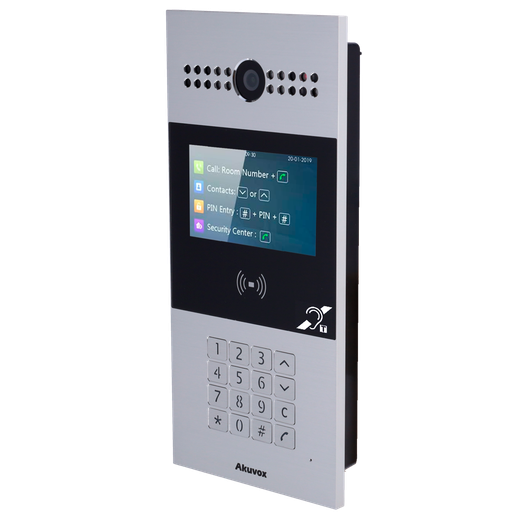

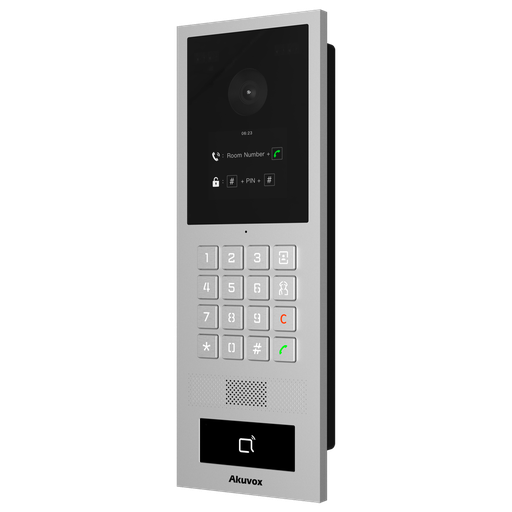

IP video door entry with 2 Mpx camera for communities
Main camera with HDR
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE+ IEEE802.3at and 2 LP wires with converter AK-NC-2
Integrated EM/MF and NFC card reader
Opening by BLE and PIN and temporary PIN keys
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/500 mA output (when powered by PoE+)
Wiegand, RS485 and magnetic loop ports
2.8" color TFT screen
Customizable screensaver
Configurable LED illumination on keypad
Suitable for exterior IP66
Vandal-resistant aluminum alloy surface IK08
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with MF technology of 13.56 MHz, NFC and Bluetooth.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

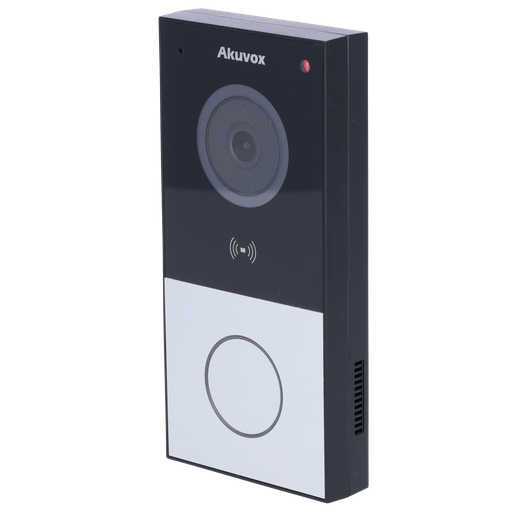

IP video door entry system with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with LED illumination
TCP/IP Connection
PoE IEEE802.3af
MF Card reader, NFC and Bluetooth
Remote door opening
1 door relay output
Port Wiegand
Configurable LED illumination on card reader
Suitable for exterior IP65
Plastic surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
EasyAccess range

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously. In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, NFC, Bluetooth, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 7" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK07 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows adding third-party access readers for user identification), two-way video (allows making a video call showing users who answer the call), ONVIF protocol (allows integrating the camera in CCTV video recorders) and standard SIP protocol 2.0 (allows integrating the equipment in third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

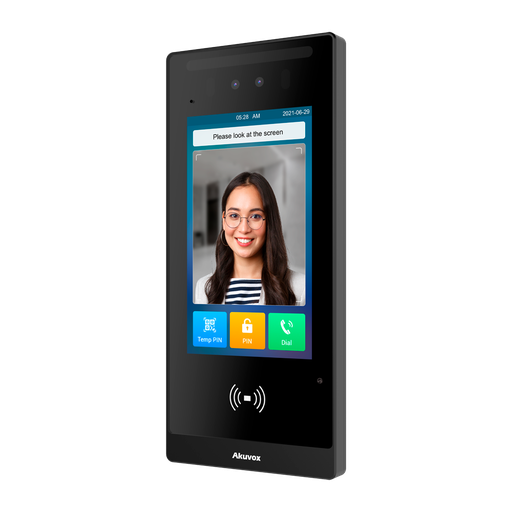

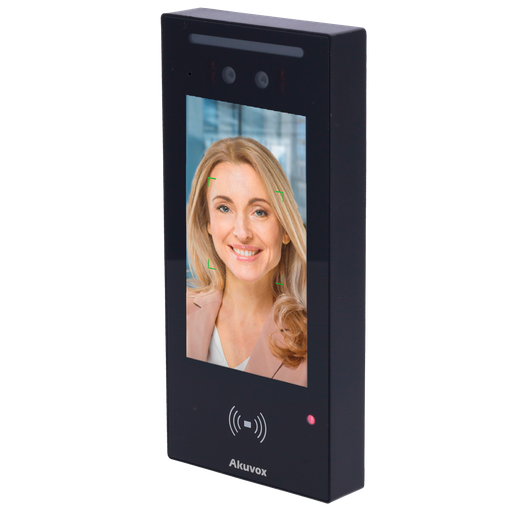

IP video door entry system with 2 Mpx camera and access control
IPS touch screen of 7"
Built-in speaker and microphone
Two-way audio and video with Crystal Clear technology
Dual camera with anti-spoofing technology
Mask detection
Identification with face recognition, EM/MF card, NFC, BLE, QR, PIN and/or combinations
Opening by temporary PIN or QR keys
Capacity of 20.000 faces, 20.000 cards and 50.000 records
Night vision with IR illumination
White LEDs for reading QRs
TCP/IP Connection
PoE IEEE802.3af
Remote door opening
2 relay outputs
Wiegand ports and RS485
Customizable interface and screen saver
Configurable LED illumination on card reader
Suitable for outdoor IP65 and IK07 anti-vandal
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each installation (Villa) or for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Interface and voices in English
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK10 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: oNVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

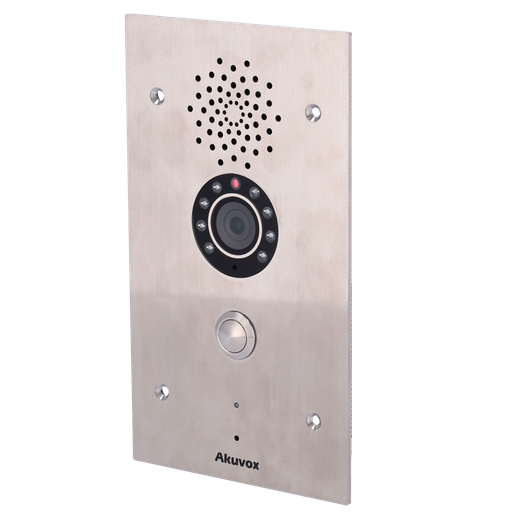

Emergency video intercom with camera 2 Mpx
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Remote door opening
2 door relay outputs
Port RS485
Call status LED
Suitable for exterior IP65
Anticorrosive steel surface SUS316 vandal resistant IK10
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

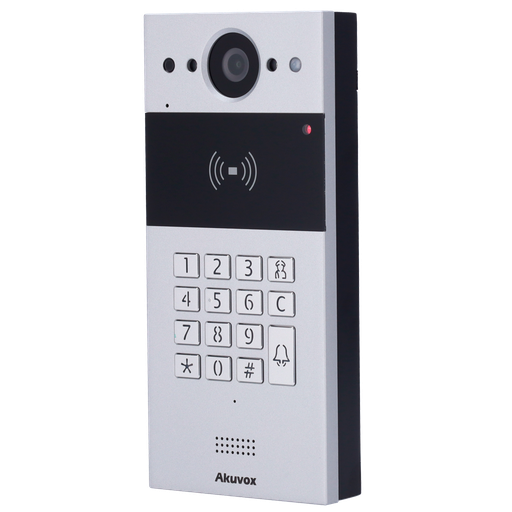

IP video door entry system with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/400 mA output (when powered by PoE, from firmware version 320.30.11.42)
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
The 2 wire equipment communicates and is powered by conventional copper cables (called wires) and distributors, making it possible to reuse conventional installations that already have this type of wiring.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

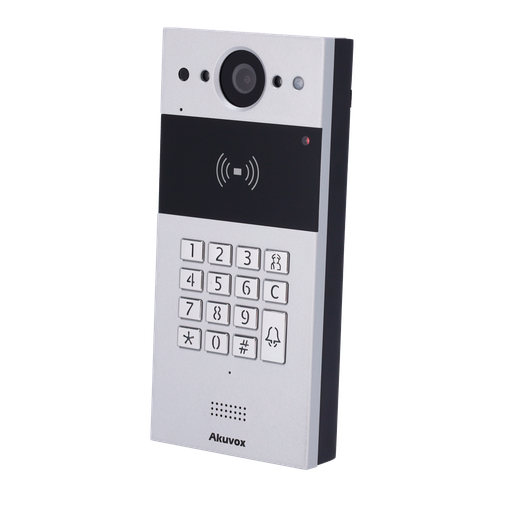

2 wire Video intercom with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
Connection 2 wires
Integrated EM/MF and NFC card reader
Remote door opening
1 door relay output
Wiegand ports and RS485
Configurable LED illumination on keypad and card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

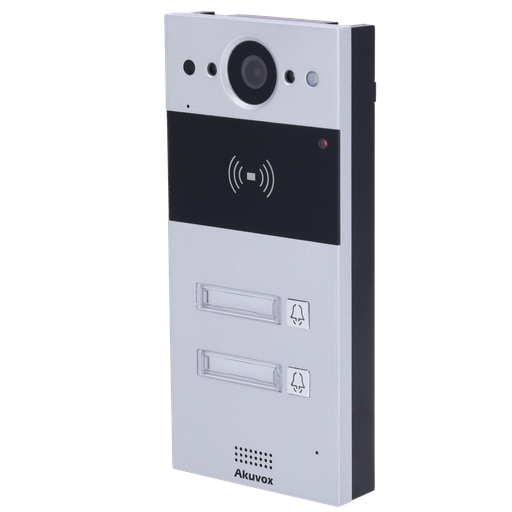

IP video intercom with 2 MP camera for 2 apartments
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/400 mA output (when powered by PoE, from firmware version 320.30.11.42)
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

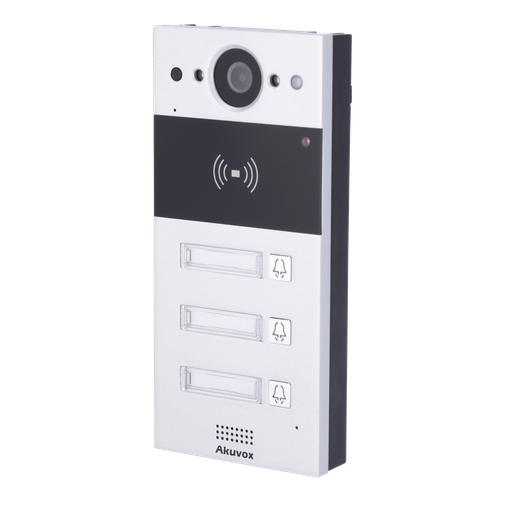

IP video intercom with 2 MP camera for 3 apartments
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/400 mA output (when powered by PoE, from firmware version 320.30.11.42)
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

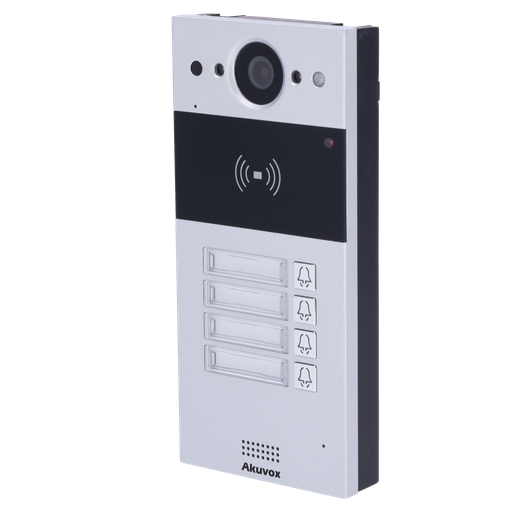

IP video intercom with 2 MP camera for 4 apartments
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/400 mA output (when powered by PoE, from firmware version 320.30.11.42)
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

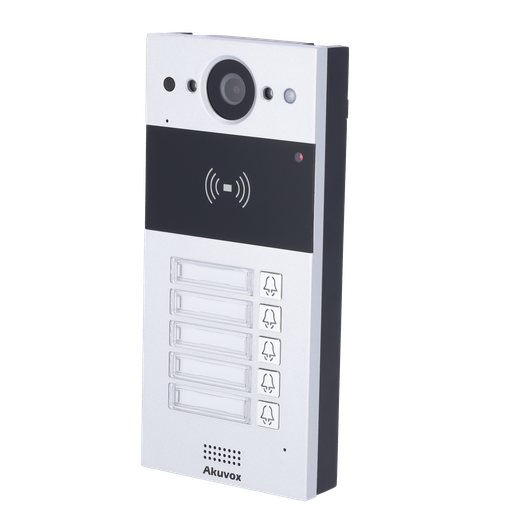

IP video intercom with 2 MP camera for 5 apartments
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/400 mA output (when powered by PoE, from firmware version 320.30.11.42)
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, NFC, as well as keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical numeric keypad allows users to easily call and enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK07 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video door entry system with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Opening with temporary PIN keys
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/400 mA output (when powered by PoE, from firmware version 320.30.11.42)
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Vandal-resistant aluminum alloy surface IK07
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, NFC, as well as keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
The 2 wire equipment communicates and is powered by conventional copper cables (called wires) and distributors, making it possible to reuse conventional installations that already have this type of wiring.
Its physical numeric keypad allows users to easily call and enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK07 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
2 wire Video intercom with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
Connection 2 LP wires
Integrated EM/MF and NFC card reader
Opening with temporary PIN keys
Remote door opening
1 door relay output
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Vandal-resistant aluminum alloy surface IK07
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously. In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video door entry system with 4 Mpx camera for 1 apartment
Wide angle lens
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF and NFC card reader
Remote door opening
2 door relay outputs
Wiegand ports and RS485
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Machined aluminum surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 7" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK06 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows adding third-party access readers for user identification), two-way video (allows making a video call showing users who answer the call), ONVIF protocol (allows integrating the camera in CCTV video recorders) and standard SIP protocol 2.0 (allows integrating the equipment in third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

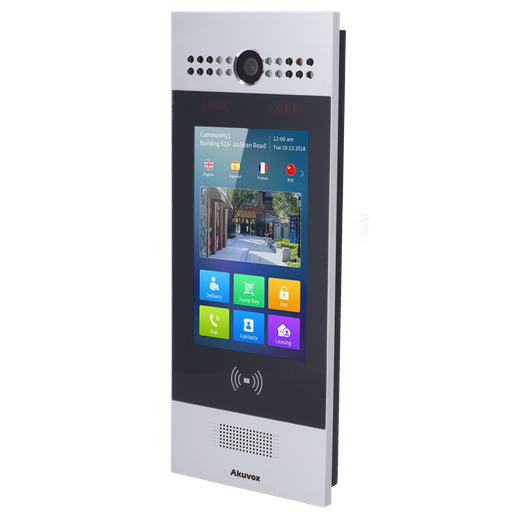

IP video intercom with 3 Mpx camera for appartements
Built-in speaker and microphone
Two-way audio and video with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF card reader
Opening by facial recognition and temporary PIN or QR keys
Remote door opening
3 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/500 mA output (when powered by PoE+)
Wiegand ports and RS485
7" configurable full color Android IPS touch screen
Customizable wallpaper and screensaver
Configurable LED illumination on card reader
Suitable for exterior IP65
Vandal-resistant aluminum alloy surface IK06
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, Bluetooth, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 8" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK10 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video door phone with 2 Mpx camera for apartments with Luxury German design
Main camera with starlight and HDR
Secondary camera of 2 Mpx for anti-spoofing technology
Integrated dual speaker and dual microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE+ IEEE802.3at
Integrated EM/MF card reader
Opening by facial recognition, BLE and temporary PIN or QR keys
Remote door opening
3 door relay outputs
Advanced access functions: anti-passback (through Cloud)
Output of 12 V/1 A (when powered by PoE+)
Wiegand, RS485 and magnetic loop ports
8" configurable full color Android IPS touch screen
Customizable wallpaper and screensaver
Configurable LED illumination on card reader
Suitable for exterior IP65
Anticorrosive steel surface SUS316 vandal resistant IK10
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with MF technology of 13.56 MHz, NFC and Bluetooth.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video door entry system with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with LED illumination
TCP/IP and WiFi connection
PoE IEEE802.3af
MF Card reader, NFC and Bluetooth
Remote door opening
1 door relay output
Port Wiegand
Configurable LED illumination on card reader
Suitable for exterior IP65
Plastic surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with MF technology of 13.56 MHz, NFC, Bluetooth, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 5" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows adding third-party access readers for user identification), two-way video (allows making a video call showing users who answer the call), ONVIF protocol (allows integrating the camera in CCTV video recorders) and standard SIP protocol 2.0 (allows integrating the equipment in third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video door entry system with 2 Mpx camera and access control
IPS touch screen of 5"
Built-in speaker and microphone
Bidirectional audio and video with Crystal Clear technology (from hardware version 216.0))
Dual camera with anti-spoofing technology
Mask detection
Identification with face recognition, MF card, NFC, BLE, QR, PIN and/or combinations
Opening by temporary PIN or QR keys
Capacity of 20.000 faces, 20.000 cards and 50.000 records
Night vision with IR illumination
White LEDs for reading QRs
TCP/IP Connection
PoE IEEE802.3af
Remote door opening
1 relay output
Wiegand ports and RS485
Customizable interface and screen saver
Configurable LED illumination on card reader
Suitable for exterior IP65
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with MF technology of 13.56 MHz, NFC and Bluetooth.
The 2 wire equipment communicates and is powered by conventional copper cables (called wires) and distributors, making it possible to reuse conventional installations that already have this type of wiring.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
2 wire Video intercom with 2 Mpx camera for 1 apartment
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with LED illumination
Connection 2 wires
MF Card reader, NFC and Bluetooth
Remote door opening
1 door relay output
Port Wiegand
Configurable LED illumination on keypad and card reader
Suitable for exterior IP65
Plastic surface
Surface mounting with bracket included
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per dwelling (Villa)
Call and user directory
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously. In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, as well as a keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Your 4.3" screen allows you to display the directory of users to call, along with your numeric keypad, to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), BIM (magnetic induction loop for the hearing impaired), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBXs).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video intercom with 2 Mpx camera for appartements
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Integrated BIM (magnetic induction loop) for people with hearing aids
Night vision with IR illumination
TCP/IP Connection
Power supply DC 12 V
Integrated EM/MF card reader
Opening with temporary PIN keys
Remote door opening
3 door relay outputs
Wiegand ports and RS485
4.3" configurable full color TFT display
Customizable wallpaper and screensaver
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, NFC, Bluetooth, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 10" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP66 allows it to be installed outdoors. In addition, its IK08 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows adding third-party access readers for user identification), two-way video (allows making a video call showing users who answer the call), ONVIF protocol (allows integrating the camera in CCTV video recorders) and standard SIP protocol 2.0 (allows integrating the equipment in third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video intercom with 5 Mpx camera for appartements
Main camera with starlight and HDR
Secondary camera of 2 Mpx for anti-spoofing technology
Integrated dual speaker and dual microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE+ IEEE802.3at
Integrated EM/MF and NFC card reader
Opening by facial recognition, BLE and temporary PIN or QR keys
Remote door opening
3 door relay outputs
Advanced access functions: anti-passback (through Cloud)
Output of 12 V/1 A (when powered by PoE+)
Wiegand, RS485 and magnetic loop ports
10" configurable full color Android IPS touch screen
Customizable wallpaper and screensaver
Configurable LED illumination on card reader
Suitable for exterior IP66
Vandal-resistant aluminum alloy surface IK08
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
